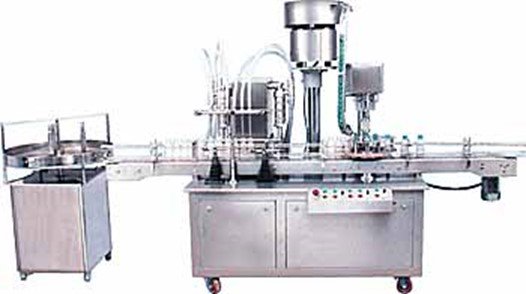

Bottle Filling and Capping Machine
Model:Bottle Filling Machine
- 1200 Bottle Per Hour
- 1500 Bottle Per Hour
- • The unit consists of S.S. Slat conveyor, filling nozzle with self-centering device, S.S. Geared pumps, “No Container Machine Stops” System.
- • Machine Structure M.S. with well painted body and fully covered by S.S sheet.
- • Inlet 3/4" connection with valve and other accessories.
- • There is manual bottle loading on conveyor.
- • The unit consists of S.S. Slat conveyor, filling nozzle with self-centering device, S.S. Geared pumps, “No Container Machine Stops” System.
- • There is a 8 filling station given. 4 Filling stations for coarse filling and another 4 for fine filling to prevent over flowing and spillage and get better accuracy in filling.
- • P.L.C Based controlled system for different filling requirement (E.g. 2, 4, 5, 6, Liter.)
- • 2 nos. S.S Gear Pumps used.
- • Filling nozzles height adjusted by single wheel setting and center distance between two nozzles adjusted by easy slide and lock system.
- • 100Ltr.S.S storage tank with cover and ball valve with inlet “T” connection, conical bottom with drain and eight outlet nozzles. (All Pipes and fitting are in S.S Material).
- • Conveyor length 2000mm with machine.
- • Conveyor Width 6” Inch.
| TECHNICAL DETAILS | |
|---|---|
| No. of S.S Gear Pump: | 2 nos |
| No. of Bottle per min: | 20 bottle |
| Electric Connections: | 2 HPX2 nos. Electric motor for Pump 1 HP 440 Volts, 50 C/S, 1440 RPM Electric Motor for conveyor Drive |
| Overall Dimensions: | 2150mm (L) x 1020 (w) x 1650 (H) in mm |
| Case Dimension: | 2300mm (L) x 1300 (w) x 1900 (H) in mm |
| Weight: | Net : 500 Kg |
