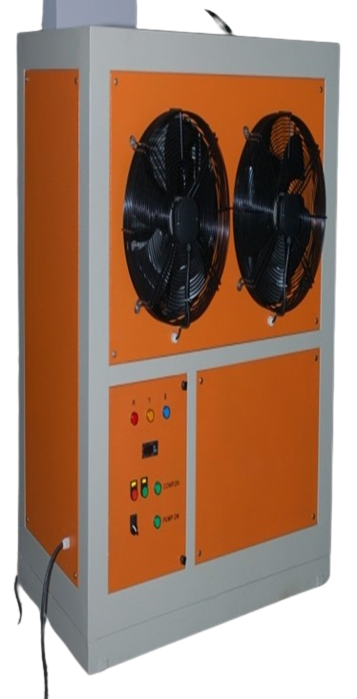

Online Chiller
| Online Chiller Capacity |
|---|
| 250 LPH-2ton |
| 500 LPH-3ton |
| 1000 LPH-5ton |
| Particulars | Technical Information |
|---|---|
| Dimension | 5 * 5 * 2.5 feet 6 * 2.5* 2 feet |
| Compressor Capacity | 5 Ton |
| Compressor Model | KCG 572 |
| Compressor Make | Emerson (Kirloskar sister concern) |
| Condensor | 24*44*4 (Coil & Fines type) |
| Fan | 2 nos. |
| Fan Size | 18”dia (Exhaust type) |
| Raw Water Pump (RWP) | CRI (SS) |
| RWP Motor | 3 phase |
| RWP Capacity | 0.75 HP |
| RWP Load | 10 A on I phase |
| RWP current | 6800 watt |
| LP & HP switch (Make) | Denforse |
| Accumulator | 1 no |
| Digital Temperature Meter | 1 no (Make Subzero) |
| Panel Board | Siemens |
| Plate Heat Exchanger | Swep (Made in Malasia) |
| Water Flow Switch | 1 no |
| Gas | R-22 |
| Flow rate | 500 LPH |
| Water Inlet Temp. | 30 to 35 degree |
| Water Outlet Temp. | 7 to 10 degree |
| Outerbody | MS Power Coated |
| Delivery | 15 to 20 days. |
